Guiding Questions

• What are some common issues with string data?
• What are the key ways to wrangle strings?
• What are regular expressions and why are they magic

The stringr package

library(tidyverse)
library(stringr)

In general, string processing tasks can be divided into detecting, locating, extracting, or replacing patterns in strings. We will see several examples. The table below includes the functions available to you in the stringr package. We split them by task. We also include the R-base equivalent when available.

All these functions take a character vector as first argument. Also, for each function, operations are vectorized: the operation gets applied to each string in the vector.

Finally, note that in this table we mention groups. These will be explained later on.

Case study 1: US murders data

In this section we introduce some of the more simple string processing challenges with the following datasets as an example:

library(rvest)
url <- paste0("https://en.wikipedia.org/w/index.php?title=",
              "Gun_violence_in_the_United_States_by_state",
              "&direction=prev&oldid=810166167")
murders_raw <- read_html(url) %>%
  html_node("table") %>%
  html_table() %>%
  setNames(c("state", "population", "total", "murder_rate"))

head(murders_raw)

## # A tibble: 6 × 4
##   state      population total murder_rate
##   <chr>      <chr>      <chr>       <dbl>
## 1 Alabama    4,853,875  348           7.2
## 2 Alaska     737,709    59            8
## 3 Arizona    6,817,565  309           4.5
## 4 Arkansas   2,977,853  181           6.1
## 5 California 38,993,940 1,861         4.8
## 6 Colorado   5,448,819  176           3.2

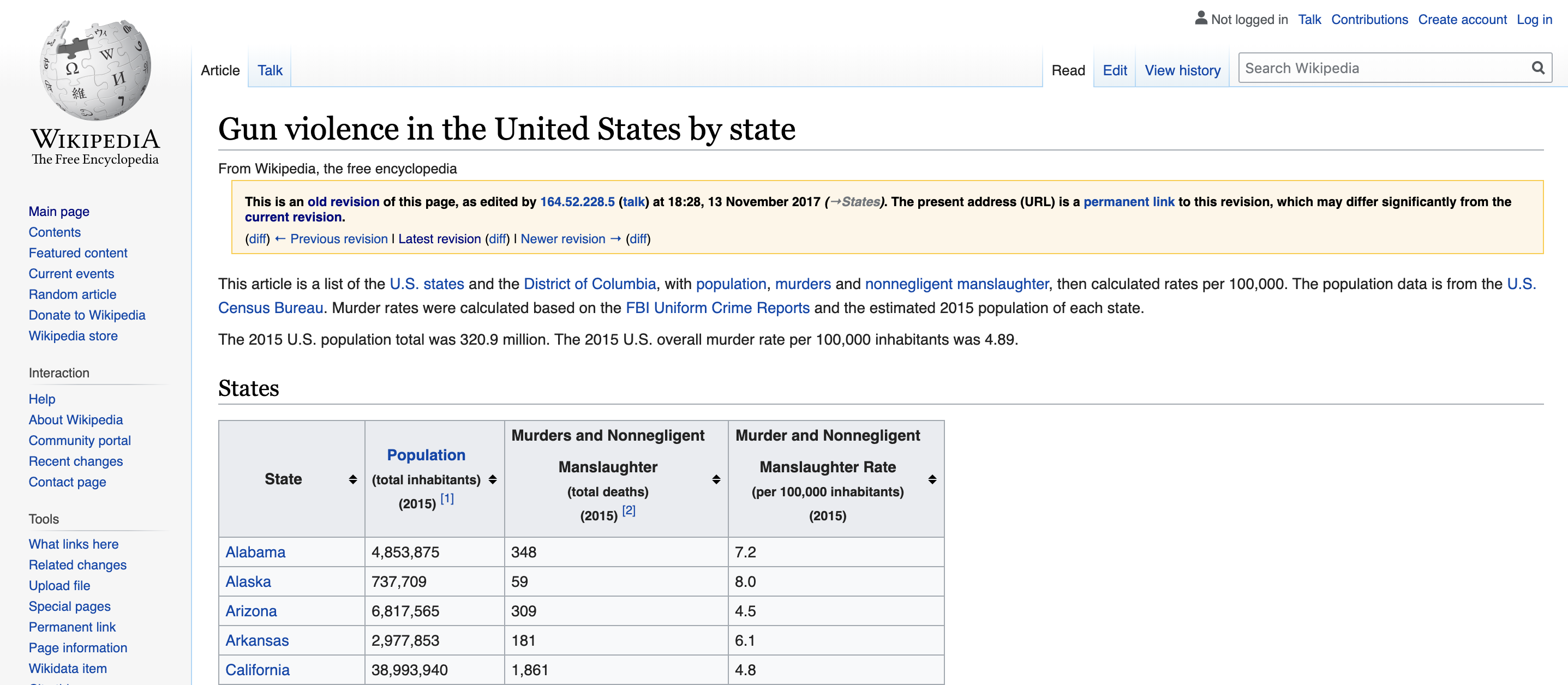

The code above shows the first step in constructing the dataset

library(dslabs)
data(murders)

from the raw data, which was extracted from a Wikipedia page.

In general, string processing involves a string and a pattern. In R, we usually store strings in a character vector such as murders$population. The first three strings in this vector defined by the population variable are:

murders_raw$population[1:3]

## [1] "4,853,875" "737,709"   "6,817,565"

The usual coercion does not work here:

as.numeric(murders_raw$population[1:3])

## Warning: NAs introduced by coercion

## [1] NA NA NA

This is because of the commas ,. The string processing we want to do here is remove the pattern, ,, from the strings in murders_raw$population and then coerce to numbers. We can use the str_detect function to see that two of the three columns have commas in the entries:

commas <- function(x) any(str_detect(x, ","))
murders_raw %>% summarize_all(commas)

## # A tibble: 1 × 4
##   state population total murder_rate
##   <lgl> <lgl>      <lgl> <lgl>
## 1 FALSE TRUE       TRUE  FALSE

We can then use the str_replace_all function to remove them:

test_1 <- str_replace_all(murders_raw$population, ",", "")
test_1 <- as.numeric(test_1)

The stringr function str_replace_all replaces all of the first argument’s instances of , (the second argument) with '' (the third argument). The first input for the function is the character vector on which you’d like to operate.

We can then use mutate_all to apply this operation to each column, since it won’t affect the columns without commas. You may notice the use of mutate_all and summarize_all here. These are versions of mutate and summarize that apply a given function to every column in the data. Above, the function we apply to every column is the commas function. Note that in using summarize_all we pipe the data in, but we do not list the columns we wish to create via summarize. To apply as.numeric to each column in murders_raw, we’d use: murders_raw %>% mutate_all(str_replace_all, ',', '') %>% mutate_at(2:3, as.numeric).

Note, the str_replace_all function is NOT an analog to mutate_all that applies to each column in the data!

It turns out that this operation is so common that readr includes the function parse_number specifically meant to remove non-numeric characters before coercing:

test_2 <- parse_number(murders_raw$population)
identical(test_1, test_2)

## [1] TRUE

So we can obtain our desired table using:

murders_new <- murders_raw %>% mutate_at(2:3, parse_number)
head(murders_new)

## # A tibble: 6 × 4
##   state      population total murder_rate
##   <chr>           <dbl> <dbl>       <dbl>
## 1 Alabama       4853875   348         7.2
## 2 Alaska         737709    59         8
## 3 Arizona       6817565   309         4.5
## 4 Arkansas      2977853   181         6.1
## 5 California   38993940  1861         4.8
## 6 Colorado      5448819   176         3.2

This case is relatively simple compared to the string processing challenges that we typically face in data science. The next example is a rather complex one and it provides several challenges that will permit us to learn many string processing techniques.

Case study 2: self-reported heights

The dslabs package includes the raw data from which the heights dataset was obtained. You can load it like this:

data(reported_heights)

These heights were obtained using a web form in which students were asked to enter their heights. They could enter anything, but the instructions asked for height in inches, a number. We compiled 1,095 submissions, but unfortunately the column vector with the reported heights had several non-numeric entries and as a result became a character vector:

class(reported_heights$height)

## [1] "character"

If we try to parse it into numbers, we get a warning:

x <- as.numeric(reported_heights$height)

## Warning: NAs introduced by coercion

Although most values appear to be height in inches as requested:

head(x)

## [1] 75 70 68 74 61 65

we do end up with many NAs:

sum(is.na(x))

## [1] 81

We can see some of the entries that are not successfully converted by using filter to keep only the entries resulting in NAs:

reported_heights %>%
  dplyr::mutate(new_height = as.numeric(height)) %>%
  dplyr::filter(is.na(new_height)) %>%
  head(n=10)

##             time_stamp    sex                 height new_height
## 1  2014-09-02 15:16:28   Male                  5' 4"         NA
## 2  2014-09-02 15:16:37 Female                  165cm         NA
## 3  2014-09-02 15:16:52   Male                    5'7         NA
## 4  2014-09-02 15:16:56   Male                  >9000         NA
## 5  2014-09-02 15:16:56   Male                   5'7"         NA
## 6  2014-09-02 15:17:09 Female                   5'3"         NA
## 7  2014-09-02 15:18:00   Male 5 feet and 8.11 inches         NA
## 8  2014-09-02 15:19:48   Male                   5'11         NA
## 9  2014-09-04 00:46:45   Male                  5'9''         NA
## 10 2014-09-04 10:29:44   Male                 5'10''         NA

We immediately see what is happening. Some of the students did not report their heights in inches as requested. We could discard these data and continue. However, many of the entries follow patterns that, in principle, we can easily convert to inches. For example, in the output above, we see various cases that use the format x'y'' with x and y representing feet and inches, respectively. Each one of these cases can be read and converted to inches by a human, for example 5'4'' is 5*12 + 4 = 64. So we could fix all the problematic entries by hand. However, humans are prone to making mistakes, so an automated approach is preferable. Also, because we plan on continuing to collect data, it will be convenient to write code that automatically does this.

A first step in this type of task is to survey the problematic entries and try to define specific patterns followed by a large groups of entries. The larger these groups, the more entries we can fix with a single programmatic approach. We want to find patterns that can be accurately described with a rule, such as “a digit, followed by a feet symbol, followed by one or two digits, followed by an inches symbol”.

To look for such patterns, it helps to remove the entries that are consistent with being in inches and to view only the problematic entries. We thus write a function to automatically do this. We keep entries that either result in NAs when applying as.numeric or are outside a range of plausible heights. We permit a range that covers about 99.9999% of the adult population. We also use suppressWarnings to avoid the warning message we know as.numeric will gives us.

not_inches <- function(x, smallest = 50, tallest = 84){
  inches <- suppressWarnings(as.numeric(x))
  ind <- is.na(inches) | inches < smallest | inches > tallest
  ind
}

We apply this function and find the number of problematic entries:

problems <- reported_heights %>%
  dplyr::filter(not_inches(height)) %>%
  pull(height)
length(problems)

## [1] 292

We can now view all the cases by simply printing them. We don’t do that here because there are 292 problems, but after surveying them carefully, we see that three patterns can be used to define three large groups within these exceptions.

1. A pattern of the form x'y or x' y'' or x'y" with x and y representing feet and inches, respectively. Here are ten examples:

## 5' 4" 5'7 5'7" 5'3" 5'11 5'9'' 5'10'' 5' 10 5'5" 5'2"

2. A pattern of the form x.y or x,y with x feet and y inches. Here are ten examples:

## 5.3 5.5 6.5 5.8 5.6 5,3 5.9 6,8 5.5 6.2

3. Entries that were reported in centimeters rather than inches. Here are ten examples:

## 150 175 177 178 163 175 178 165 165 180

Once we see these large groups following specific patterns, we can develop a plan of attack. Remember that there is rarely just one way to perform these tasks. Here we pick one that helps us teach several useful techniques. But surely there is a more efficient way of performing the task.

Plan of attack: we will convert entries fitting the first two patterns into a standardized one. We will then leverage the standardization to extract the feet and inches and convert to inches. We will then define a procedure for identifying entries that are in centimeters and convert them to inches. After applying these steps, we will then check again to see what entries were not fixed and see if we can tweak our approach to be more comprehensive.

At the end, we hope to have a script that makes web-based data collection methods robust to the most common user mistakes.

To achieve our goal, we will use a technique that enables us to accurately detect patterns and extract the parts we want: regular expressions (regex). But first, we quickly describe how to escape the function of certain characters so that they can be included in strings.

How to escape when defining strings

To define strings in R, we can use either double quotes:

s <- "Hello!"

or single quotes:

s <- 'Hello!'

Make sure you choose the correct single quote since using the back quote will give you an error:

s <- `Hello`

Error: object 'Hello' not found

Now, what happens if the string we want to define includes double quotes? For example, if we want to write 10 inches like this 10"? In this case you can’t use:

s <- "10""

because this is just the string 10 followed by a double quote. If you type this into R, you get an error because you have an unclosed double quote. To avoid this, we can use the single quotes:

s <- '10"'

If we print out s we see that the double quotes are escaped with the backslash \.

s

## [1] "10\""

In fact, escaping with the backslash provides a way to define the string while still using the double quotes to define strings:

s <- "10\""

In R, the function cat lets us see what the string actually looks like:

cat(s)

## 10"

Now, what if we want our string to be 5 feet written like this 5'? In this case, we can use the double quotes:

s <- "5'"
cat(s)

## 5'

So we’ve learned how to write 5 feet and 10 inches separately, but what if we want to write them together to represent 5 feet and 10 inches like this 5'10"? In this case, neither the single nor double quotes will work. This:

s <- '5'10"'

closes the string after 5 and this:

s <- "5'10""

closes the string after 10. Keep in mind that if we type one of the above code snippets into R, it will get stuck waiting for you to close the open quote and you will have to exit the execution with the esc button.

In this situation, we need to escape the function of the quotes with the backslash \. You can escape either character like this:

s <- '5\'10"'
cat(s)

## 5'10"

or like this:

s <- "5'10\""
cat(s)

## 5'10"

Escaping characters is something we often have to use when processing strings.

Regular expressions

A regular expression (regex) is a way to describe specific patterns of characters of text. They can be used to determine if a given string matches the pattern. A set of rules has been defined to do this efficiently and precisely and here we show some examples. We can learn more about these rules by reading a detailed tutorials^{1 2}. This RStudio cheat sheet³ is also very useful.

The patterns supplied to the stringr functions can be a regex rather than a standard string. We will learn how this works through a series of examples.

Throughout this section you will see that we create strings to test out our regex. To do this, we define patterns that we know should match and also patterns that we know should not. We will call them yes and no, respectively. This permits us to check for the two types of errors: failing to match and incorrectly matching.

pattern <- ","
str_detect(murders_raw$total, pattern)

str_subset(reported_heights$height, "cm")

## [1] "165cm"  "170 cm"

yes <- c("180 cm", "70 inches")
no <- c("180", "70''")
s <- c(yes, no)

str_detect(s, "cm") | str_detect(s, "inches")

## [1]  TRUE  TRUE FALSE FALSE

str_detect(s, "cm|inches")

## [1]  TRUE  TRUE FALSE FALSE

yes <- c("5", "6", "5'10", "5 feet", "4'11")
no <- c("", ".", "Five", "six")
s <- c(yes, no)
pattern <- "\\d"
str_detect(s, pattern)

## [1]  TRUE  TRUE  TRUE  TRUE  TRUE FALSE FALSE FALSE FALSE

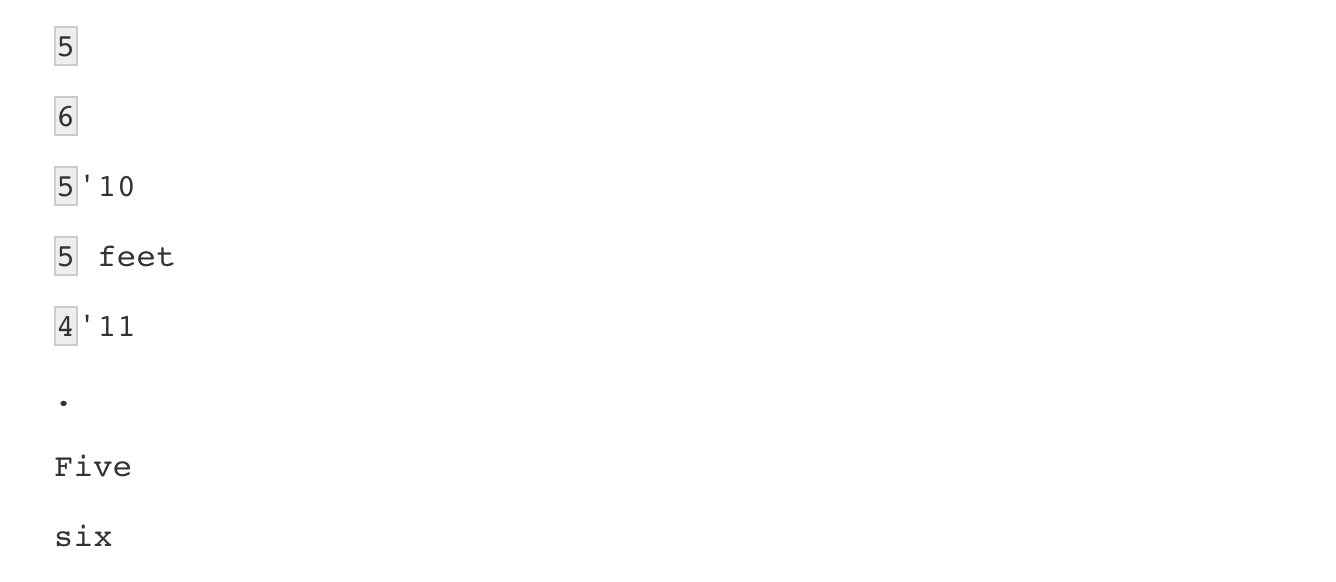

str_view(s, pattern)

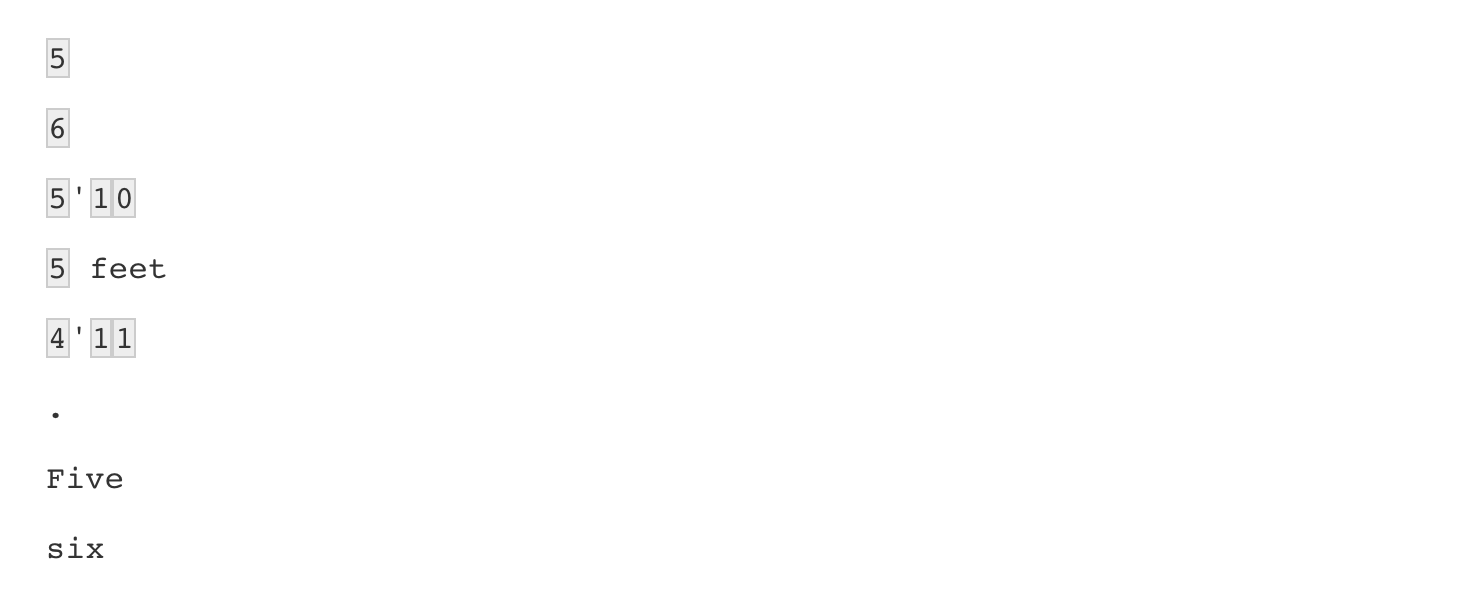

str_view_all(s, pattern)

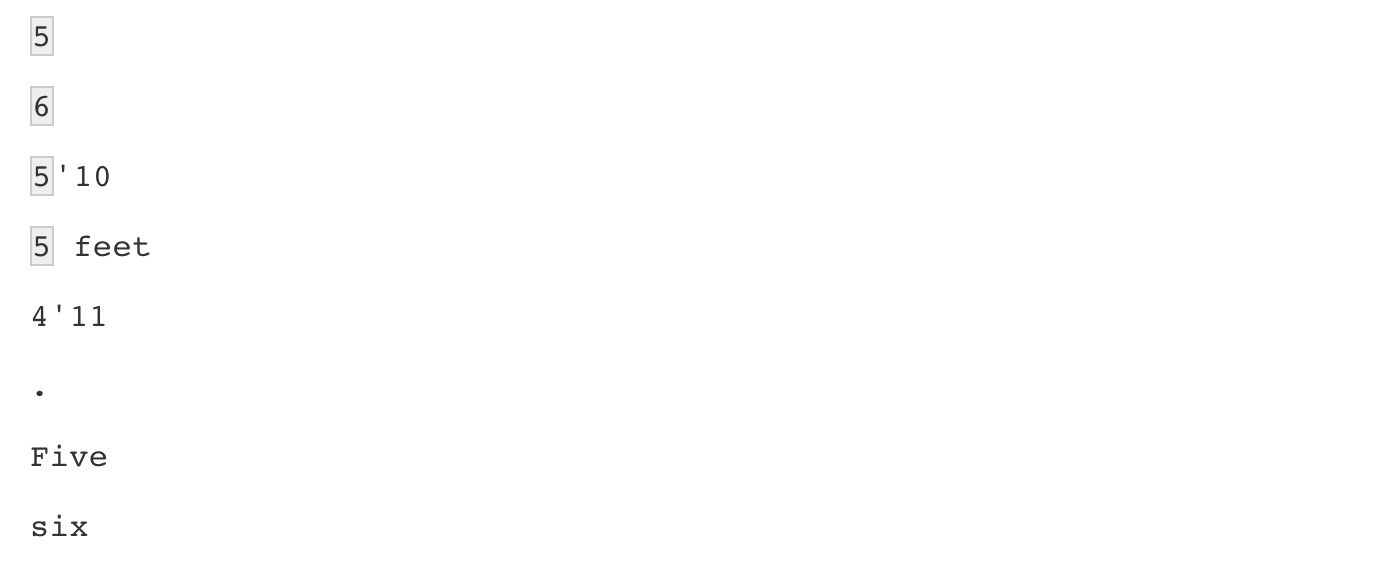

str_view(s, "[56]")

yes <- as.character(4:7)
no <- as.character(1:3)
s <- c(yes, no)
str_detect(s, "[4-7]")

## [1]  TRUE  TRUE  TRUE  TRUE FALSE FALSE FALSE

pattern <- "^\\d$"
yes <- c("1", "5", "9")
no <- c("12", "123", " 1", "a4", "b")
s <- c(yes, no)

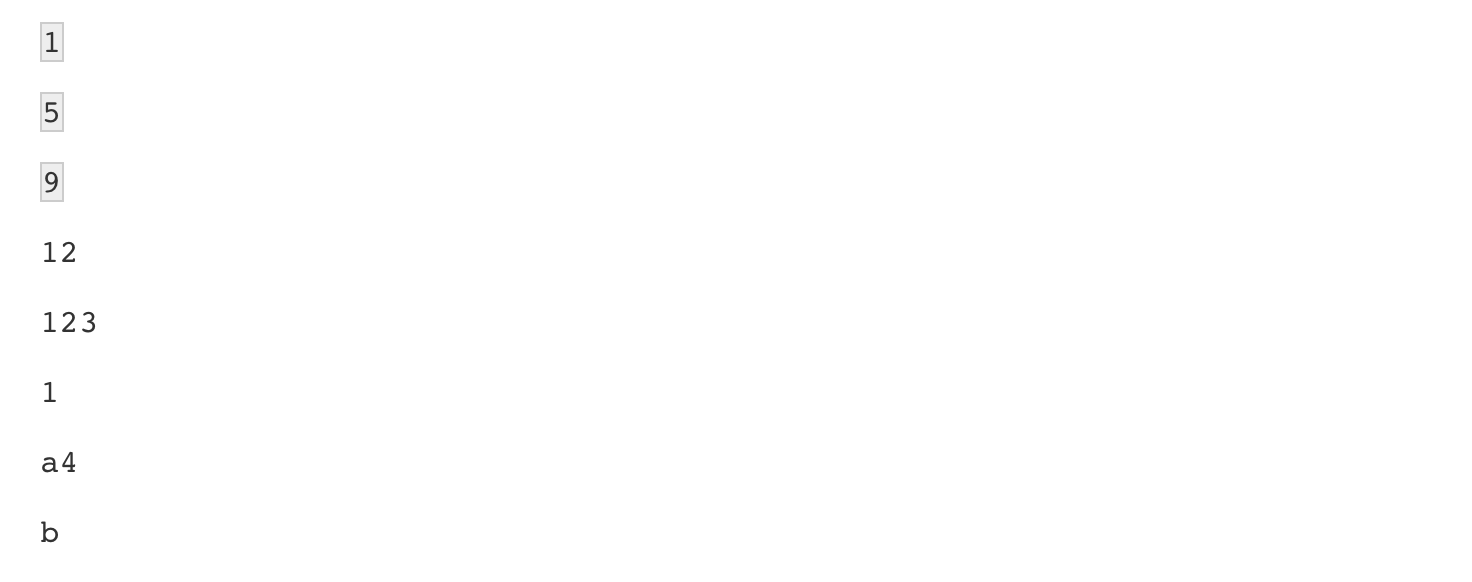

str_view_all(s, pattern)

pattern <- "^\\d{1,2}$"
yes <- c("1", "5", "9", "12")
no <- c("123", "a4", "b")

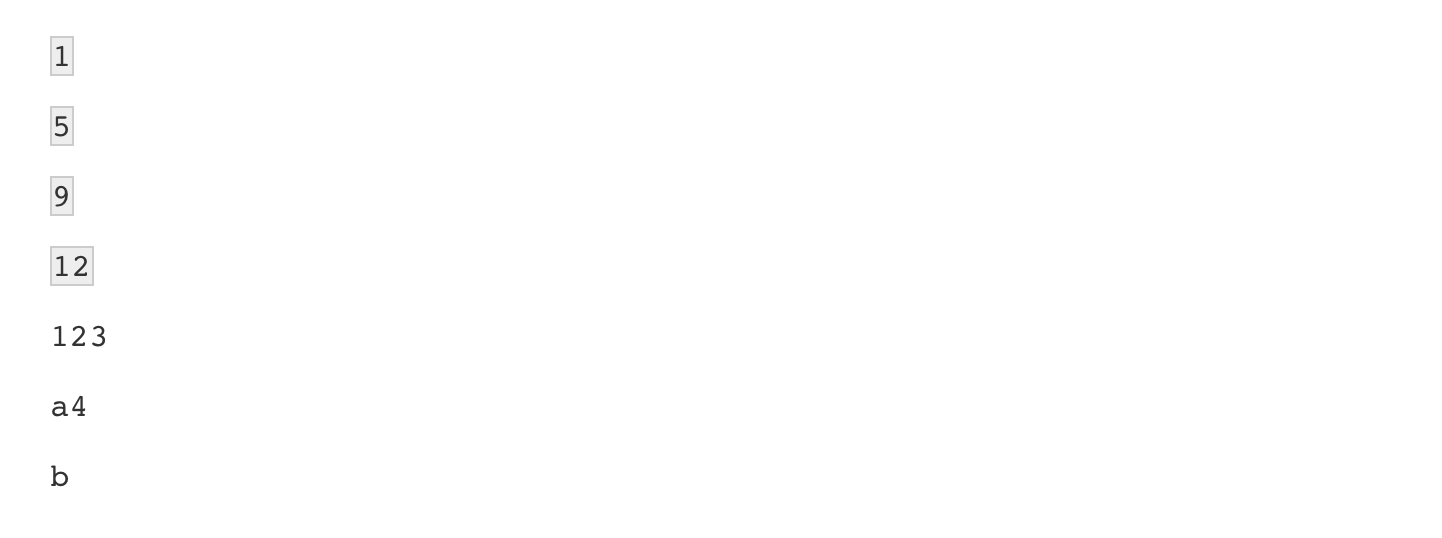

str_view(c(yes, no), pattern)

pattern <- "^[4-7]'\\d{1,2}\"$"

yes <- c("5'7\"", "6'2\"",  "5'12\"")
no <- c("6,2\"", "6.2\"","I am 5'11\"", "3'2\"", "64")
str_detect(yes, pattern)

## [1] TRUE TRUE TRUE

str_detect(no, pattern)

## [1] FALSE FALSE FALSE FALSE FALSE

identical("Hi", "Hi ")

## [1] FALSE

pattern_2 <- "^[4-7]'\\s\\d{1,2}\"$"
str_subset(problems, pattern_2)

## [1] "5' 4\""  "5' 11\"" "5' 7\""

yes <- c("AB", "A1B", "A11B", "A111B", "A1111B")
no <- c("A2B", "A21B")
str_detect(yes, "A1*B")

## [1] TRUE TRUE TRUE TRUE TRUE

str_detect(no, "A1*B")

## [1] FALSE FALSE

data.frame(string = c("AB", "A1B", "A11B", "A111B", "A1111B"),
           none_or_more = str_detect(yes, "A1*B"),
           nore_or_once = str_detect(yes, "A1?B"),
           once_or_more = str_detect(yes, "A1+B"))

##   string none_or_more nore_or_once once_or_more
## 1     AB         TRUE         TRUE        FALSE
## 2    A1B         TRUE         TRUE         TRUE
## 3   A11B         TRUE        FALSE         TRUE
## 4  A111B         TRUE        FALSE         TRUE
## 5 A1111B         TRUE        FALSE         TRUE

pattern <- "[^a-zA-Z]\\d"
yes <- c(".3", "+2", "-0","*4")
no <- c("A3", "B2", "C0", "E4")
str_detect(yes, pattern)

## [1] TRUE TRUE TRUE TRUE

str_detect(no, pattern)

## [1] FALSE FALSE FALSE FALSE

pattern_without_groups <- "^[4-7],\\d*$"

pattern_with_groups <-  "^([4-7]),(\\d*)$"

yes <- c("5,9", "5,11", "6,", "6,1")
no <- c("5'9", ",", "2,8", "6.1.1")
s <- c(yes, no)
str_detect(s, pattern_without_groups)

## [1]  TRUE  TRUE  TRUE  TRUE FALSE FALSE FALSE FALSE

str_detect(s, pattern_with_groups)

## [1]  TRUE  TRUE  TRUE  TRUE FALSE FALSE FALSE FALSE

str_match(s, pattern_with_groups)

##      [,1]   [,2] [,3]
## [1,] "5,9"  "5"  "9"
## [2,] "5,11" "5"  "11"
## [3,] "6,"   "6"  ""
## [4,] "6,1"  "6"  "1"
## [5,] NA     NA   NA
## [6,] NA     NA   NA
## [7,] NA     NA   NA
## [8,] NA     NA   NA

str_extract(s, pattern_with_groups)

## [1] "5,9"  "5,11" "6,"   "6,1"  NA     NA     NA     NA

Search and replace with regex

Earlier we defined the object problems containing the strings that do not appear to be in inches. We can see that not too many of our problematic strings match the pattern:

pattern <- "^[4-7]'\\d{1,2}\"$"
sum(str_detect(problems, pattern))

## [1] 14

To see why this is, we show some examples that expose why we don’t have more matches:

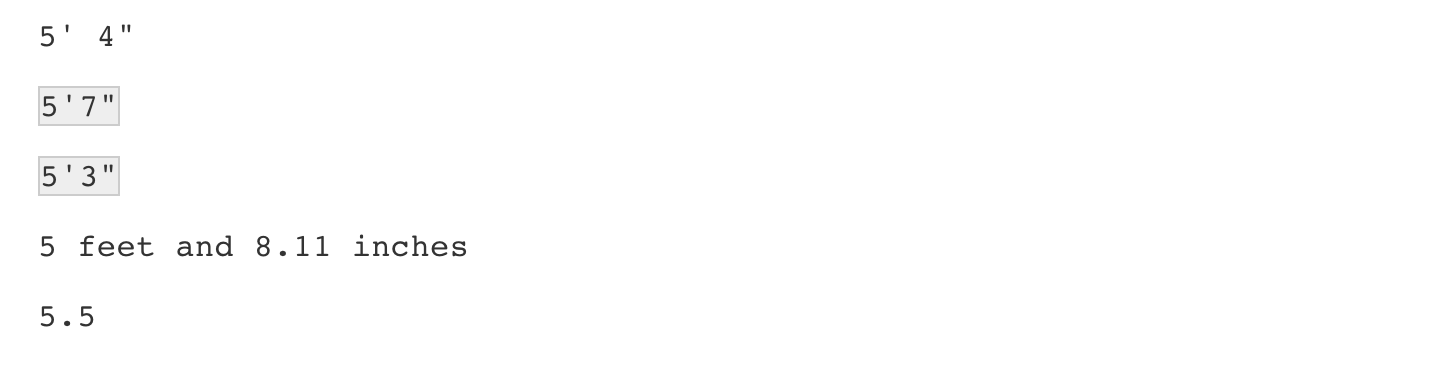

problems[c(2, 10, 11, 12, 15)] %>% str_view(pattern)

An initial problem we see immediately is that some students wrote out the words “feet” and “inches”. We can see the entries that did this with the str_subset function:

str_subset(problems, "inches")

## [1] "5 feet and 8.11 inches" "Five foot eight inches" "5 feet 7inches"
## [4] "5ft 9 inches"           "5 ft 9 inches"          "5 feet 6 inches"

We also see that some entries used two single quotes '' instead of a double quote ".

str_subset(problems, "''")

##  [1] "5'9''"   "5'10''"  "5'10''"  "5'3''"   "5'7''"   "5'6''"   "5'7.5''"
##  [8] "5'7.5''" "5'10''"  "5'11''"  "5'10''"  "5'5''"

To correct this, we can replace the different ways of representing inches and feet with a uniform symbol. We will use ' for feet, whereas for inches we will simply not use a symbol since some entries were of the form x'y. Now, if we no longer use the inches symbol, we have to change our pattern accordingly:

pattern <- "^[4-7]'\\d{1,2}$"

If we do this replacement before the matching, we get many more matches:

problems %>%
  str_replace("feet|ft|foot", "'") %>% # replace feet, ft, foot with '
  str_replace("inches|in|''|\"", "") %>% # remove all inches symbols
  str_detect(pattern) %>%
  sum()

## [1] 48

However, we still have many cases to go.

Note that in the code above, we leveraged the stringr consistency and used the pipe.

For now, we improve our pattern by adding \\s* in front of and after the feet symbol ' to permit space between the feet symbol and the numbers. Now we match a few more entries:

pattern <- "^[4-7]\\s*'\\s*\\d{1,2}$"
problems %>%
  str_replace("feet|ft|foot", "'") %>% # replace feet, ft, foot with '
  str_replace("inches|in|''|\"", "") %>% # remove all inches symbols
  str_detect(pattern) %>%
  sum

## [1] 53

We might be tempted to avoid doing this by removing all the spaces with str_replace_all. However, when doing such an operation we need to make sure that it does not have unintended effects. In our reported heights examples, this will be a problem because some entries are of the form x y with space separating the feet from the inches. If we remove all spaces, we will incorrectly turn x y into xy which implies that a 6 1 would become 61 inches instead of 73 inches.

The second large type of problematic entries were of the form x.y, x,y and x y. We want to change all these to our common format x'y. But we can’t just do a search and replace because we would change values such as 70.5 into 70'5. Our strategy will therefore be to search for a very specific pattern that assures us feet and inches are being provided and then, for those that match, replace appropriately.

pattern_with_groups <-  "^([4-7]),(\\d*)$"
yes <- c("5,9", "5,11", "6,", "6,1")
no <- c("5'9", ",", "2,8", "6.1.1")
s <- c(yes, no)
str_replace(s, pattern_with_groups, "\\1'\\2")

## [1] "5'9"   "5'11"  "6'"    "6'1"   "5'9"   ","     "2,8"   "6.1.1"

pattern_with_groups <-"^([4-7])\\s*[,\\.\\s+]\\s*(\\d*)$"

str_subset(problems, pattern_with_groups) %>% head()

## [1] "5.3"  "5.25" "5.5"  "6.5"  "5.8"  "5.6"

str_subset(problems, pattern_with_groups) %>%
  str_replace(pattern_with_groups, "\\1'\\2") %>% head

## [1] "5'3"  "5'25" "5'5"  "6'5"  "5'8"  "5'6"

Testing and improving

Developing the right regex on the first try is often difficult. Trial and error is a common approach to finding the regex pattern that satisfies all desired conditions. In the previous sections, we have developed a powerful string processing technique that can help us catch many of the problematic entries. Here we will test our approach, search for further problems, and tweak our approach for possible improvements. Let’s write a function that captures all the entries that can’t be converted into numbers remembering that some are in centimeters (we will deal with those later):

not_inches_or_cm <- function(x, smallest = 50, tallest = 84){
  inches <- suppressWarnings(as.numeric(x))
  ind <- !is.na(inches) &
    ((inches >= smallest & inches <= tallest) |
       (inches/2.54 >= smallest & inches/2.54 <= tallest))
  !ind
}

problems <- reported_heights %>%
  dplyr::filter(not_inches_or_cm(height)) %>%
  pull(height)
length(problems)

## [1] 200

Let’s see what proportion of these fit our pattern after the processing steps we developed above:

converted <- problems %>%
  str_replace("feet|foot|ft", "'") %>% # convert feet symbols to '
  str_replace("inches|in|''|\"", "") %>%  # remove inches symbols
  str_replace("^([4-7])\\s*[,\\.\\s+]\\s*(\\d*)$", "\\1'\\2")# change format

pattern <- "^[4-7]\\s*'\\s*\\d{1,2}$"
index <- str_detect(converted, pattern)
mean(index)

## [1] 0.615

Note how we leveraged the pipe, one of the advantages of using stringr. This last piece of code shows that we have matched well over half of the strings. Let’s examine the remaining cases:

converted[!index]

##  [1] "6"             "165cm"         "511"           "6"
##  [5] "2"             ">9000"         "5 ' and 8.11 " "11111"
##  [9] "6"             "103.2"         "19"            "5"
## [13] "300"           "6'"            "6"             "Five ' eight "
## [17] "7"             "214"           "6"             "0.7"
## [21] "6"             "2'33"          "612"           "1,70"
## [25] "87"            "5'7.5"         "5'7.5"         "111"
## [29] "5' 7.78"       "12"            "6"             "yyy"
## [33] "89"            "34"            "25"            "6"
## [37] "6"             "22"            "684"           "6"
## [41] "1"             "1"             "6*12"          "87"
## [45] "6"             "1.6"           "120"           "120"
## [49] "23"            "1.7"           "6"             "5"
## [53] "69"            "5' 9 "         "5 ' 9 "        "6"
## [57] "6"             "86"            "708,661"       "5 ' 6 "
## [61] "6"             "649,606"       "10000"         "1"
## [65] "728,346"       "0"             "6"             "6"
## [69] "6"             "100"           "88"            "6"
## [73] "170 cm"        "7,283,465"     "5"             "5"
## [77] "34"

Four clear patterns arise:

1. Many students measuring exactly 5 or 6 feet did not enter any inches, for example 6', and our pattern requires that inches be included.
2. Some students measuring exactly 5 or 6 feet entered just that number.
3. Some of the inches were entered with decimal points. For example 5'7.5''. Our pattern only looks for two digits.
4. Some entries have spaces at the end, for example 5 ' 9.

Although not as common, we also see the following problems:

5. Some entries are in meters and some of these use European decimals: 1.6, 1,70.
6. Two students added cm.
7. A student spelled out the numbers: Five foot eight inches.

It is not necessarily clear that it is worth writing code to handle these last three cases since they might be rare enough. However, some of them provide us with an opportunity to learn a few more regex techniques, so we will build a fix.

For case 1, if we add a '0 after the first digit, for example, convert all 6 to 6'0, then our previously defined pattern will match. This can be done using groups:

yes <- c("5", "6", "5")
no <- c("5'", "5''", "5'4")
s <- c(yes, no)
str_replace(s, "^([4-7])$", "\\1'0")

## [1] "5'0" "6'0" "5'0" "5'"  "5''" "5'4"

The pattern says it has to start (^) with a digit between 4 and 7 and end there ($). The parenthesis defines the group that we pass as \\1 to generate the replacement regex string.

We can adapt this code slightly to handle the case 2 as well, which covers the entry 5'. Note 5' is left untouched. This is because the extra ' makes the pattern not match since we have to end with a 5 or 6. We want to permit the 5 or 6 to be followed by 0 or 1 feet sign. So we can simply add '{0,1} after the ' to do this. However, we can use the none or once special character ?. As we saw above, this is different from * which is none or more. We now see that the fourth case is also converted:

str_replace(s, "^([56])'?$", "\\1'0")

## [1] "5'0" "6'0" "5'0" "5'0" "5''" "5'4"

Here we only permit 5 and 6, but not 4 and 7. This is because 5 and 6 feet tall is quite common, so we assume those that typed 5 or 6 really meant 60 or 72 inches. However, 4 and 7 feet tall are so rare that, although we accept 84 as a valid entry, we assume 7 was entered in error.

We can use quantifiers to deal with case 3. These entries are not matched because the inches include decimals and our pattern does not permit this. We need to allow the second group to include decimals not just digits. This means we must permit zero or one period . then zero or more digits. So we will be using both ? and *. Also remember that, for this particular case, the period needs to be escaped since it is a special character (it means any character except line break). Here is a simple example of how we can use *.

So we can adapt our pattern, currently ^[4-7]\\s*'\\s*\\d{1,2}$ to permit a decimal at the end:

pattern <- "^[4-7]\\s*'\\s*(\\d+\\.?\\d*)$"

Case 4, meters using commas, we can approach similarly to how we converted the x.y to x'y. A difference is that we require that the first digit be 1 or 2:

yes <- c("1,7", "1, 8", "2, " )
no <- c("5,8", "5,3,2", "1.7")
s <- c(yes, no)
str_replace(s, "^([12])\\s*,\\s*(\\d*)$", "\\1\\.\\2")

## [1] "1.7"   "1.8"   "2."    "5,8"   "5,3,2" "1.7"

We will later check if the entries are meters using their numeric values. We will come back to the case study after introducing two widely used functions in string processing that will come in handy when developing our final solution for the self-reported heights.

Trimming

In general, spaces at the start or end of the string are uninformative. These can be particularly deceptive because sometimes they can be hard to see:

s <- "Hi "
cat(s)

## Hi

identical(s, "Hi")

## [1] FALSE

This is a general enough problem that there is a function dedicated to removing them: str_trim.

str_trim("5 ' 9 ")

## [1] "5 ' 9"

Changing lettercase

Notice that regex is case sensitive. Often we want to match a word regardless of case. One approach to doing this is to first change everything to lower case and then proceeding ignoring case. As an example, note that one of the entries writes out numbers as words Five foot eight inches. Although not efficient, we could add 13 extra str_replace calls to convert zero to 0, one to 1, and so on. To avoid having to write two separate operations for Zero and zero, One and one, etc., we can use the str_to_lower function to make all works lower case first:

s <- c("Five feet eight inches")
str_to_lower(s)

## [1] "five feet eight inches"

Other related functions are str_to_upper and str_to_title. These are especially useful when you’re trying to merge two datasets – you’ll often see state names in various capitalization forms.

We are now ready to define a procedure that converts all the problematic cases to inches.

Case study 2: self-reported heights (continued)

We now put all of what we have learned together into a function that takes a string vector and tries to convert as many strings as possible to one format. We write a function that puts together what we have done above.

convert_format <- function(s){
  s %>%
    str_replace("feet|foot|ft", "'") %>%
    str_replace_all("inches|in|''|\"|cm|and", "") %>%
    str_replace("^([4-7])\\s*[,\\.\\s+]\\s*(\\d*)$", "\\1'\\2") %>%
    str_replace("^([56])'?$", "\\1'0") %>%
    str_replace("^([12])\\s*,\\s*(\\d*)$", "\\1\\.\\2") %>%
    str_trim()
}

We can also write a function that converts words to numbers:

library(english)
words_to_numbers <- function(s){
  s <- str_to_lower(s)
  for(i in 0:11)
    s <- str_replace_all(s, words(i), as.character(i))
  s
}

Note that we can perform the above operation more efficiently with the function recode. Now we can see which problematic entries remain:

converted <- problems %>% words_to_numbers() %>% convert_format()
remaining_problems <- converted[not_inches_or_cm(converted)]
pattern <- "^[4-7]\\s*'\\s*\\d+\\.?\\d*$"
index <- str_detect(remaining_problems, pattern)
remaining_problems[!index]

##  [1] "511"       "2"         ">9000"     "11111"     "103.2"     "19"
##  [7] "300"       "7"         "214"       "0.7"       "2'33"      "612"
## [13] "1.70"      "87"        "111"       "12"        "yyy"       "89"
## [19] "34"        "25"        "22"        "684"       "1"         "1"
## [25] "6*12"      "87"        "1.6"       "120"       "120"       "23"
## [31] "1.7"       "86"        "708,661"   "649,606"   "10000"     "1"
## [37] "728,346"   "0"         "100"       "88"        "7,283,465" "34"

apart from the cases reported as meters, which we will fix below, they all seem to be cases that are impossible to fix.

s <- c("5'10", "6'1")
tab <- data.frame(x = s)

tab %>% separate(x, c("feet", "inches"), sep = "'")

##   feet inches
## 1    5     10
## 2    6      1

library(tidyr)
tab %>% tidyr::extract(x, c("feet", "inches"), regex = "(\\d)'(\\d{1,2})")

##   feet inches
## 1    5     10
## 2    6      1

s <- c("5'10", "6'1\"","5'8inches")
tab <- data.frame(x = s)

tab %>% separate(x, c("feet","inches"), sep = "'", fill = "right")

##   feet  inches
## 1    5      10
## 2    6      1"
## 3    5 8inches

tab %>% tidyr::extract(x, c("feet", "inches"), regex = "(\\d)'(\\d{1,2})")

##   feet inches
## 1    5     10
## 2    6      1
## 3    5      8

pattern <- "^([4-7])\\s*'\\s*(\\d+\\.?\\d*)$"

smallest <- 50
tallest <- 84
new_heights <- reported_heights %>%
  dplyr::mutate(original = height,
         height = words_to_numbers(height) %>% convert_format()) %>%
  tidyr::extract(height, c("feet", "inches"), regex = pattern, remove = FALSE) %>%
  dplyr::mutate_at(c("height", "feet", "inches"), as.numeric) %>%
  dplyr::mutate(guess = 12 * feet + inches) %>%
  dplyr::mutate(height = case_when(
    is.na(height) ~ as.numeric(NA),
    between(height, smallest, tallest) ~ height,  #inches
    between(height/2.54, smallest, tallest) ~ height/2.54, #cm
    between(height*100/2.54, smallest, tallest) ~ height*100/2.54, #meters
    TRUE ~ as.numeric(NA))) %>%
  dplyr::mutate(height = ifelse(is.na(height) &
                           inches < 12 & between(guess, smallest, tallest),
                         guess, height)) %>%
  dplyr::select(-guess)

new_heights %>%
  dplyr::filter(not_inches(original)) %>%
  dplyr::select(original, height) %>%
  arrange(height) %>%
  View()

new_heights %>% arrange(height) %>% head(n=7)

##            time_stamp    sex height feet inches original
## 1 2017-07-04 01:30:25   Male  50.00   NA     NA       50
## 2 2017-09-07 10:40:35   Male  50.00   NA     NA       50
## 3 2014-09-02 15:18:30 Female  51.00   NA     NA       51
## 4 2016-06-05 14:07:20 Female  52.00   NA     NA       52
## 5 2016-06-05 14:07:38 Female  52.00   NA     NA       52
## 6 2014-09-23 03:39:56 Female  53.00   NA     NA       53
## 7 2015-01-07 08:57:29   Male  53.77   NA     NA    53.77

String splitting

Another very common data wrangling operation is string splitting. To illustrate how this comes up, we start with an illustrative example. Suppose we did not have the function read_csv or read.csv available to us. We instead have to read a csv file using the base R function readLines like this:

filename <- system.file("extdata/murders.csv", package = "dslabs")
lines <- readLines(filename)

This function reads-in the data line-by-line to create a vector of strings. In this case, one string for each row in the spreadsheet. The first six lines are:

lines %>% head()

## [1] "state,abb,region,population,total" "Alabama,AL,South,4779736,135"
## [3] "Alaska,AK,West,710231,19"          "Arizona,AZ,West,6392017,232"
## [5] "Arkansas,AR,South,2915918,93"      "California,CA,West,37253956,1257"

We want to extract the values that are separated by a comma for each string in the vector. The command str_split does exactly this:

x <- str_split(lines, ",")
x %>% head(2)

## [[1]]
## [1] "state"      "abb"        "region"     "population" "total"
##
## [[2]]
## [1] "Alabama" "AL"      "South"   "4779736" "135"

Note that the first entry has the column names, so we can separate that out:

col_names <- x[[1]]
x <- x[-1]

To convert our list into a data frame, we can use a shortcut provided by the map functions in the purrr package. The map function applies the same function to each element in a list. So if we want to extract the first entry of each element in x, we can write:

library(purrr)
map(x, function(y) y[1]) %>% head(2)

## [[1]]
## [1] "Alabama"
##
## [[2]]
## [1] "Alaska"

However, because this is such a common task, purrr provides a shortcut. If the second argument receives an integer instead of a function, it assumes we want that entry. So the code above can be written more efficiently like this:

map(x, 1)

To force map to return a character vector instead of a list, we can use map_chr. Similarly, map_int returns integers. So to create our data frame, we can use:

dat <- tibble(map_chr(x, 1),
              map_chr(x, 2),
              map_chr(x, 3),
              map_chr(x, 4),
              map_chr(x, 5)) %>%
  mutate_all(parse_guess) %>%
  setNames(col_names)
dat %>% head

## # A tibble: 6 × 5
##   state      abb   region population total
##   <chr>      <chr> <chr>       <dbl> <dbl>
## 1 Alabama    AL    South     4779736   135
## 2 Alaska     AK    West       710231    19
## 3 Arizona    AZ    West      6392017   232
## 4 Arkansas   AR    South     2915918    93
## 5 California CA    West     37253956  1257
## 6 Colorado   CO    West      5029196    65

If you learn more about the purrr package, you will learn that you perform the above with the following, more efficient, code:

dat <- x %>%
  transpose() %>%
  map( ~ parse_guess(unlist(.))) %>%
  setNames(col_names) %>%
  as_tibble()

It turns out that we can avoid all the work shown above after the call to str_split. Specifically, if we know that the data we are extracting can be represented as a table, we can use the argument simplify=TRUE and str_split returns a matrix instead of a list:

x <- str_split(lines, ",", simplify = TRUE)
col_names <- x[1,]
x <- x[-1,]
colnames(x) <- col_names
x %>% as_tibble() %>%
  mutate_all(parse_guess) %>%
  head(5)

## # A tibble: 5 × 5
##   state      abb   region population total
##   <chr>      <chr> <chr>       <dbl> <dbl>
## 1 Alabama    AL    South     4779736   135
## 2 Alaska     AK    West       710231    19
## 3 Arizona    AZ    West      6392017   232
## 4 Arkansas   AR    South     2915918    93
## 5 California CA    West     37253956  1257

Case study 3: extracting tables from a PDF

One of the datasets provided in dslabs shows scientific funding rates by gender in the Netherlands:

library(dslabs)
data("research_funding_rates")
research_funding_rates %>%
  dplyr::select("discipline", "success_rates_men", "success_rates_women")

##            discipline success_rates_men success_rates_women
## 1   Chemical sciences              26.5                25.6
## 2   Physical sciences              19.3                23.1
## 3             Physics              26.9                22.2
## 4          Humanities              14.3                19.3
## 5  Technical sciences              15.9                21.0
## 6   Interdisciplinary              11.4                21.8
## 7 Earth/life sciences              24.4                14.3
## 8     Social sciences              15.3                11.5
## 9    Medical sciences              18.8                11.2

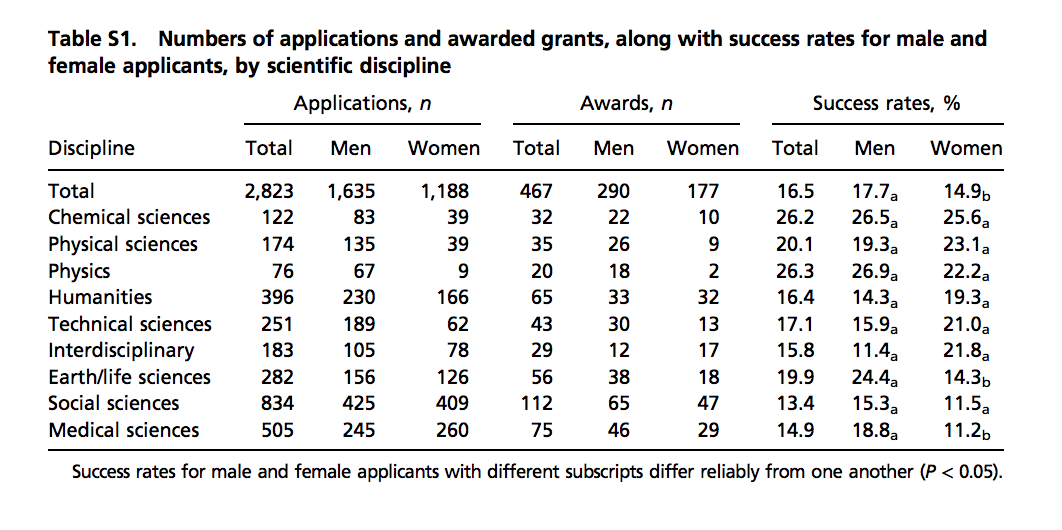

The data comes from a paper published in the Proceedings of the National Academy of Science (PNAS)⁵, a widely read scientific journal. However, the data is not provided in a spreadsheet; it is in a table in a PDF document. Here is a screenshot of the table:

(Source: Romy van der Lee and Naomi Ellemers, PNAS 2015 112 (40) 12349-12353⁶.)

We could extract the numbers by hand, but this could lead to human error. Instead, we can try to wrangle the data using R. We start by downloading the pdf document, then importing into R:

library("pdftools")
temp_file <- tempfile()
url <- paste0("https://www.pnas.org/content/suppl/2015/09/16/",
              "1510159112.DCSupplemental/pnas.201510159SI.pdf")
download.file(url, temp_file)
txt <- pdf_text(temp_file)
file.remove(temp_file)

If we examine the object text, we notice that it is a character vector with an entry for each page. So we keep the page we want:

raw_data_research_funding_rates <- txt[2]

The steps above can actually be skipped because we include this raw data in the dslabs package as well:

data("raw_data_research_funding_rates")

Examining the object raw_data_research_funding_rates we see that it is a long string and each line on the page, including the table rows, are separated by the symbol for newline: \n. We therefore can create a list with the lines of the text as elements as follows:

tab <- str_split(raw_data_research_funding_rates, "\n")

Because we start off with just one element in the string, we end up with a list with just one entry.

tab <- tab[[1]]

By examining tab we see that the information for the column names is the third and fourth entries:

the_names_1 <- tab[3]
the_names_2 <- tab[4]

The first of these rows looks like this:

##                                                       Applications, n

##           Awards, n                      Success rates, %

We want to create one vector with one name for each column. Using some of the functions we have just learned, we do this. Let’s start with the_names_1, shown above. We want to remove the leading space and anything following the comma. We use regex for the latter. Then we can obtain the elements by splitting strings separated by space. We want to split only when there are 2 or more spaces to avoid splitting Success rates. So we use the regex \\s{2,}

the_names_1 <- the_names_1 %>%
  str_trim() %>%
  str_replace_all(",\\s.", "") %>%
  str_split("\\s{2,}", simplify = TRUE)
the_names_1

##      [,1]           [,2]     [,3]
## [1,] "Applications" "Awards" "Success rates"

Now we will look at the_names_2:

##                         Discipline              Total     Men      Women

##   Total    Men       Women          Total    Men      Women

Here we want to trim the leading space and then split by space as we did for the first line:

the_names_2 <- the_names_2 %>%
  str_trim() %>%
  str_split("\\s+", simplify = TRUE)
the_names_2

##      [,1]         [,2]    [,3]  [,4]    [,5]    [,6]  [,7]    [,8]    [,9]
## [1,] "Discipline" "Total" "Men" "Women" "Total" "Men" "Women" "Total" "Men"
##      [,10]
## [1,] "Women"

We can then join these to generate one name for each column:

tmp_names <- str_c(rep(the_names_1, each = 3), the_names_2[-1], sep = "_")
the_names <- c(the_names_2[1], tmp_names) %>%
  str_to_lower() %>%
  str_replace_all("\\s", "_")
the_names

##  [1] "discipline"          "applications_total"  "applications_men"
##  [4] "applications_women"  "awards_total"        "awards_men"
##  [7] "awards_women"        "success_rates_total" "success_rates_men"
## [10] "success_rates_women"

Now we are ready to get the actual data. By examining the tab object, we notice that the information is in lines 6 through 14. We can use str_split again to achieve our goal:

new_research_funding_rates <- tab[6:14] %>%
  str_trim %>%
  str_split("\\s{2,}", simplify = TRUE) %>%
  data.frame(stringsAsFactors = FALSE) %>%
  setNames(the_names) %>%
  mutate_at(-1, parse_number)
new_research_funding_rates %>% as_tibble()

## # A tibble: 9 × 10
##   discipline applications_total applications_men applications_women awards_total
##   <chr>                   <dbl>            <dbl>              <dbl>        <dbl>
## 1 Chemical …                122               83                 39           32
## 2 Physical …                174              135                 39           35
## 3 Physics                    76               67                  9           20
## 4 Humanities                396              230                166           65
## 5 Technical…                251              189                 62           43
## 6 Interdisc…                183              105                 78           29
## 7 Earth/lif…                282              156                126           56
## 8 Social sc…                834              425                409          112
## 9 Medical s…                505              245                260           75
## # ℹ 5 more variables: awards_men <dbl>, awards_women <dbl>,
## #   success_rates_total <dbl>, success_rates_men <dbl>,
## #   success_rates_women <dbl>

We can see that the objects are identical:

identical(research_funding_rates, new_research_funding_rates)

## [1] TRUE

Recoding

Another common operation involving strings is recoding the names of categorical variables. Let’s say you have really long names for your levels and you will be displaying them in plots, you might want to use shorter versions of these names. For example, in character vectors with country names, you might want to change “United States of America” to “USA” and “United Kingdom” to UK, and so on. We can do this with case_when, although the tidyverse offers an option that is specifically designed for this task: the recode function.

Here is an example that shows how to rename countries with long names:

library(dslabs)
data("gapminder")

Suppose we want to show life expectancy time series by country for the Caribbean:

gapminder %>%
  dplyr::filter(region == "Caribbean") %>%
  ggplot(aes(year, life_expectancy, color = country)) +
  geom_line()

The plot is what we want, but much of the space is wasted to accommodate some of the long country names. We have four countries with names longer than 12 characters. These names appear once for each year in the Gapminder dataset. Once we pick nicknames, we need to change them all consistently. The recode function can be used to do this:

gapminder %>% dplyr::filter(region=="Caribbean") %>%
  mutate(country = recode(country,
                          `Antigua and Barbuda` = "Barbuda",
                          `Dominican Republic` = "DR",
                          `St. Vincent and the Grenadines` = "St. Vincent",
                          `Trinidad and Tobago` = "Trinidad")) %>%
  ggplot(aes(year, life_expectancy, color = country)) +
  geom_line()

There are other similar functions in other R packages, such as recode_factor and fct_recoder in the forcats package.

fn <- system.file("extdata", "RD-Mortality-Report_2015-18-180531.pdf",
                  package="dslabs")

system2("open", args = fn)

system("cmd.exe", input = paste("start", fn))

install.packages("pdftools")
library(pdftools)

HTML

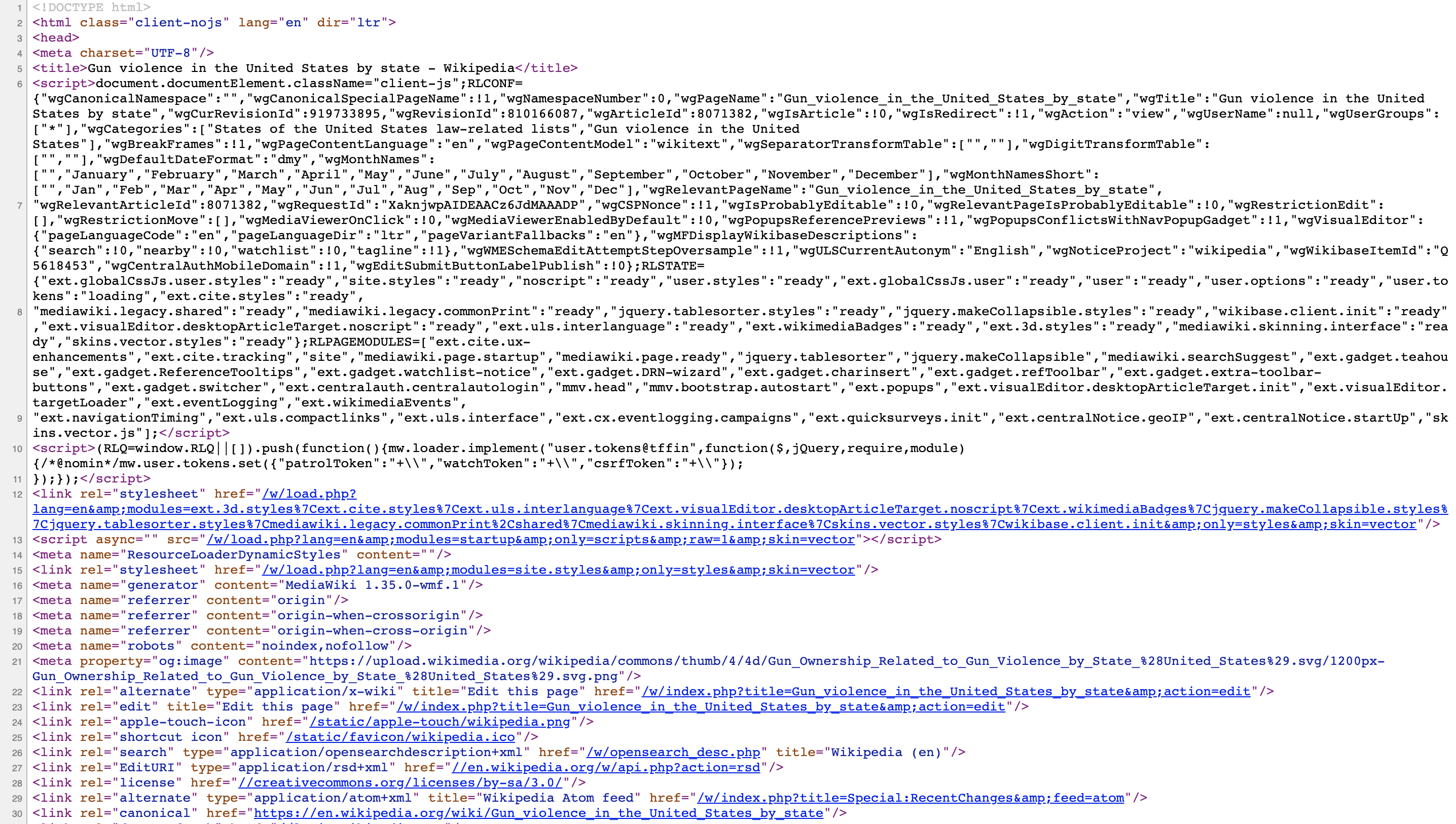

Because this code is accessible, we can download the HTML file, import it into R, and then write programs to extract the information we need from the page. However, once we look at HTML code, this might seem like a daunting task. But we will show you some convenient tools to facilitate the process. To get an idea of how it works, here are a few lines of code from the Wikipedia page that provides the US murders data:

<table class="wikitable sortable">
<tr>
<th>State</th>
<th><a href="/wiki/List_of_U.S._states_and_territories_by_population"
title="List of U.S. states and territories by population">Population</a><br />
<small>(total inhabitants)</small><br />
<small>(2015)</small> <sup id="cite_ref-1" class="reference">
<a href="#cite_note-1">[1]</a></sup></th>
<th>Murders and Nonnegligent
<p>Manslaughter<br />
<small>(total deaths)</small><br />
<small>(2015)</small> <sup id="cite_ref-2" class="reference">
<a href="#cite_note-2">[2]</a></sup></p>
</th>
<th>Murder and Nonnegligent
<p>Manslaughter Rate<br />
<small>(per 100,000 inhabitants)</small><br />
<small>(2015)</small></p>
</th>
</tr>
<tr>
<td><a href="/wiki/Alabama" title="Alabama">Alabama</a></td>
<td>4,853,875</td>
<td>348</td>
<td>7.2</td>
</tr>
<tr>
<td><a href="/wiki/Alaska" title="Alaska">Alaska</a></td>
<td>737,709</td>
<td>59</td>
<td>8.0</td>
</tr>
<tr>

You can actually see the data, except data values are surrounded by html code such as <td>. We can also see a pattern of how it is stored. If you know HTML, you can write programs that leverage knowledge of these patterns to extract what we want. We also take advantage of a language widely used to make webpages look “pretty” called Cascading Style Sheets (CSS).

Although we provide tools that make it possible to scrape data without knowing HTML, as a data scientist it is quite useful to learn some HTML and CSS. Not only does this improve your scraping skills, but it might come in handy if you are creating a webpage to showcase your work. There are plenty of online courses and tutorials for learning these. Two examples are Codeacademy⁹ and W3schools¹⁰.

The rvest package

The tidyverse provides a web harvesting package called rvest. The first step using this package is to import the webpage into R. The package makes this quite simple:

library(tidyverse)
library(rvest)
h <- read_html(url)

Note that the entire Murders in the US Wikipedia webpage is now contained in h. The class of this object is:

class(h)

## [1] "xml_document" "xml_node"

The rvest package is actually more general; it handles XML documents. XML is a general markup language (that’s what the ML stands for) that can be used to represent any kind of data. HTML is a specific type of XML specifically developed for representing webpages. Here we focus on HTML documents.

Now, how do we extract the table from the object h? If we print h, we don’t really see much:

h

## {html_document}
## <html class="client-nojs vector-feature-language-in-header-enabled vector-feature-language-in-main-page-header-disabled vector-feature-sticky-header-disabled vector-feature-page-tools-pinned-disabled vector-feature-toc-pinned-clientpref-1 vector-feature-main-menu-pinned-disabled vector-feature-limited-width-clientpref-1 vector-feature-limited-width-content-enabled vector-feature-zebra-design-disabled vector-feature-custom-font-size-clientpref-0 vector-feature-client-preferences-disabled vector-feature-typography-survey-disabled vector-toc-available" lang="en" dir="ltr">
## [1] <head>\n<meta http-equiv="Content-Type" content="text/html; charset=UTF-8 ...
## [2] <body class="skin-vector skin-vector-search-vue mediawiki ltr sitedir-ltr ...

We can see all the code that defines the downloaded webpage using the html_text function like this:

html_text(h)

We don’t show the output here because it includes thousands of characters, but if we look at it, we can see the data we are after are stored in an HTML table: you can see this in this line of the HTML code above <table class="wikitable sortable">. The different parts of an HTML document, often defined with a message in between < and > are referred to as nodes. The rvest package includes functions to extract nodes of an HTML document: html_nodes extracts all nodes of different types and html_node extracts the first one. To extract the tables from the html code we use:

tab <- h %>% html_nodes("table")

Now, instead of the entire webpage, we just have the html code for the tables in the page:

tab

## {xml_nodeset (2)}
## [1] <table class="wikitable sortable"><tbody>\n<tr>\n<th>State\n</th>\n<th>\n ...
## [2] <table class="nowraplinks hlist mw-collapsible mw-collapsed navbox-inner" ...

The table we are interested is the first one:

tab[[1]]

## {html_node}
## <table class="wikitable sortable">
## [1] <tbody>\n<tr>\n<th>State\n</th>\n<th>\n<a href="/wiki/List_of_U.S._states ...

This is clearly not a tidy dataset, not even a data frame. In the code above, you can definitely see a pattern and writing code to extract just the data is very doable. In fact, rvest includes a function just for converting HTML tables into data frames:

tab <- tab[[1]] %>% html_table
class(tab)

## [1] "tbl_df"     "tbl"        "data.frame"

We are now much closer to having a usable data table:

tab <- tab %>% setNames(c("state", "population", "total", "murder_rate"))
head(tab)

## # A tibble: 6 × 4
##   state      population total murder_rate
##   <chr>      <chr>      <chr>       <dbl>
## 1 Alabama    4,853,875  348           7.2
## 2 Alaska     737,709    59            8
## 3 Arizona    6,817,565  309           4.5
## 4 Arkansas   2,977,853  181           6.1
## 5 California 38,993,940 1,861         4.8
## 6 Colorado   5,448,819  176           3.2

We still have some wrangling to do. For example, we need to remove the commas and turn characters into numbers. Before continuing with this, we will learn a more general approach to extracting information from web sites.

CSS selectors

The default look of a webpage made with the most basic HTML is quite unattractive. The aesthetically pleasing pages we see today are made using CSS to define the look and style of webpages. The fact that all pages for a company have the same style usually results from their use of the same CSS file to define the style. The general way these CSS files work is by defining how each of the elements of a webpage will look. The title, headings, itemized lists, tables, and links, for example, each receive their own style including font, color, size, and distance from the margin. CSS does this by leveraging patterns used to define these elements, referred to as selectors. An example of such a pattern, which we used above, is table, but there are many, many more.

If we want to grab data from a webpage and we happen to know a selector that is unique to the part of the page containing this data, we can use the html_nodes function. However, knowing which selector can be quite complicated. In fact, the complexity of webpages has been increasing as they become more sophisticated. For some of the more advanced ones, it seems almost impossible to find the nodes that define a particular piece of data. However, selector gadgets actually make this possible.

SelectorGadget¹¹ is piece of software that allows you to interactively determine what CSS selector you need to extract specific components from the webpage. If you plan on scraping data other than tables from html pages, we highly recommend you install it. A Chrome extension is available which permits you to turn on the gadget and then, as you click through the page, it highlights parts and shows you the selector you need to extract these parts. There are various demos of how to do this including rvest author Hadley Wickham’s vignette¹² and other tutorials based on the vignette^{13 14}.

JSON

Sharing data on the internet has become more and more common. Unfortunately, providers use different formats, which makes it harder for data scientists to wrangle data into R. Yet there are some standards that are also becoming more common. Currently, a format that is widely being adopted is the JavaScript Object Notation or JSON. Because this format is very general, it is nothing like a spreadsheet. This JSON file looks more like the code you use to define a list. Here is an example of information stored in a JSON format:

##
## Attaching package: 'jsonlite'

## The following object is masked from 'package:purrr':
##
##     flatten

## [
##   {
##     "name": "Miguel",
##     "student_id": 1,
##     "exam_1": 85,
##     "exam_2": 86
##   },
##   {
##     "name": "Sofia",
##     "student_id": 2,
##     "exam_1": 94,
##     "exam_2": 93
##   },
##   {
##     "name": "Aya",
##     "student_id": 3,
##     "exam_1": 87,
##     "exam_2": 88
##   },
##   {
##     "name": "Cheng",
##     "student_id": 4,
##     "exam_1": 90,
##     "exam_2": 91
##   }
## ]

The file above actually represents a data frame. To read it, we can use the function fromJSON from the jsonlite package. Note that JSON files are often made available via the internet. Several organizations provide a JSON API or a web service that you can connect directly to and obtain data. Here is an example:

library(jsonlite)
res <- fromJSON('http://ergast.com/api/f1/2004/1/results.json')

citi_bike <- fromJSON("http://citibikenyc.com/stations/json")

This downloads a list. The first argument tells you when you downloaded it:

citi_bike$executionTime

and the second is a data table:

citi_bike$stationBeanList %>% as_tibble()

You can learn much more by examining tutorials and help files from the jsonlite package. This package is intended for relatively simple tasks such as converting data into tables. For more flexibility, we recommend rjson.
